Product Description

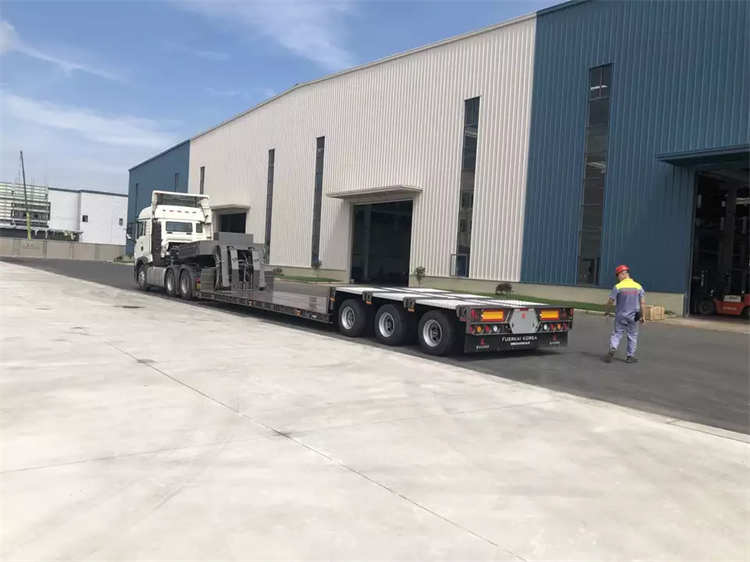

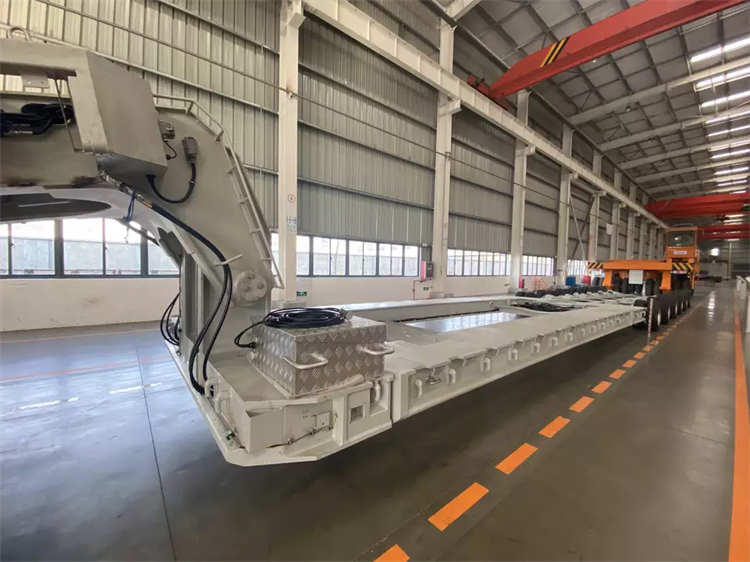

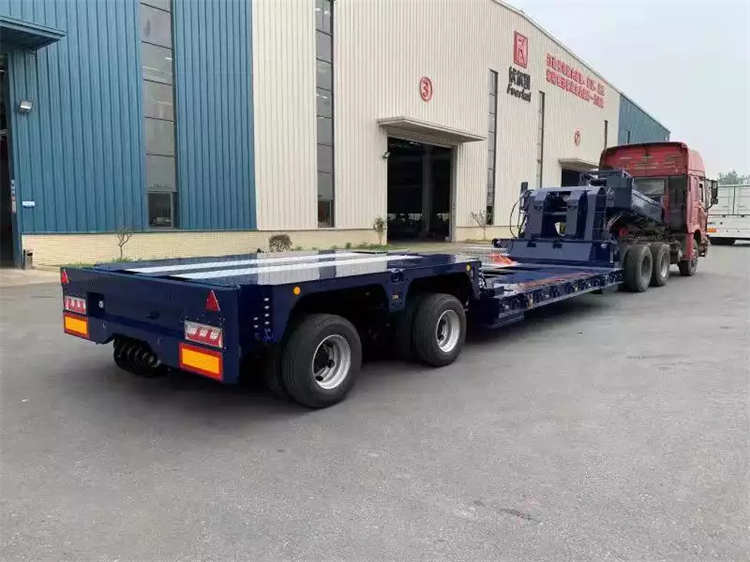

3 Axle 80 Ton Detachable Gooseneck Trailer | Yangzhou Vulcan Machinery Manufacturing Co., Ltd
3 Axle 80 Ton Detachable Gooseneck Trailer | Yangzhou Vulcan Machinery Manufacturing Co., Ltd
3 Axle 80 Ton Detachable Gooseneck Trailer | Yangzhou Vulcan Machinery Manufacturing Co., Ltd
3 Axle 80 Ton Detachable Gooseneck Trailer | Yangzhou Vulcan Machinery Manufacturing Co., Ltd
| Product Name | 2/3 axle semi trailer |
| Tare Weight | (customized) |
| Dimension | (customized) |
| Max payload (T) | According to the customer's actual loading tonnage and load method, select and optimize the steel ratio |
| Axles | single axle, double axle, three axle, four axle, etc., two lines and four axles, three lines and six axles, four lines and eight axles, five lines and ten axles |
| wheel base | (customized) |
| Rim | 6.75-17.5 |
| Tire | pneumatic tire, solid tire, polyurethane filled tire |
| Tire Wheelbase | 2475mm |
| Tire No. | (customized) |
| Suspension | Leaf spring/air/hydraulic suspension |
| King pin | JOST brand 2.5 inch and 3.5inch |
| Main beam | Material is WELTEN80 Steel ,Height: 400mm (customized) |
| upper plate is 25mm, middle plate is 12mm, down plate is 25mm(customized) | |
| Towing Pin Material | Alloy steel |
| Towing Pin Type | "I" type |
| Brake chamber | N0.30 (type) |
| Anti-lock Braking System and material | ABS and EBS Aluminum |
| ABS | WABCO (Brand) |
| Light | LED |
| Voltage | 24V |
| Painting | As customer's request |
| Vehicle structure: | lifting, pulling, articulation, side beam expansion, detachable gooseneck, hydraulic ladder, spring ladde |
